5V fixed positive linear voltage regulator, surface mountable in an SO package. Features a 1.7V dropout voltage, 100mA maximum output current, and a wide input voltage range up to 30V. Operates from -40°C to 125°C with a nominal output voltage of 5V and a quiescent current of 6mA. This RoHS compliant component offers a Power Supply Rejection Ratio (PSRR) of 49dB.
PackageSO
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L05ABD technical specifications.
General
Package/Case
SO
Dropout Voltage
1.7V
Height
1.25mm
Lead Free
Lead Free
Length
5mm
Max Input Voltage
30V
Min Input Voltage
40V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Min Output Voltage
5V
Max Supply Current
6mA
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
2000
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
49dB
Quiescent Current
6mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L05ABD Datasheet
Download the complete datasheet for Stmicroelectronics L78L05ABD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

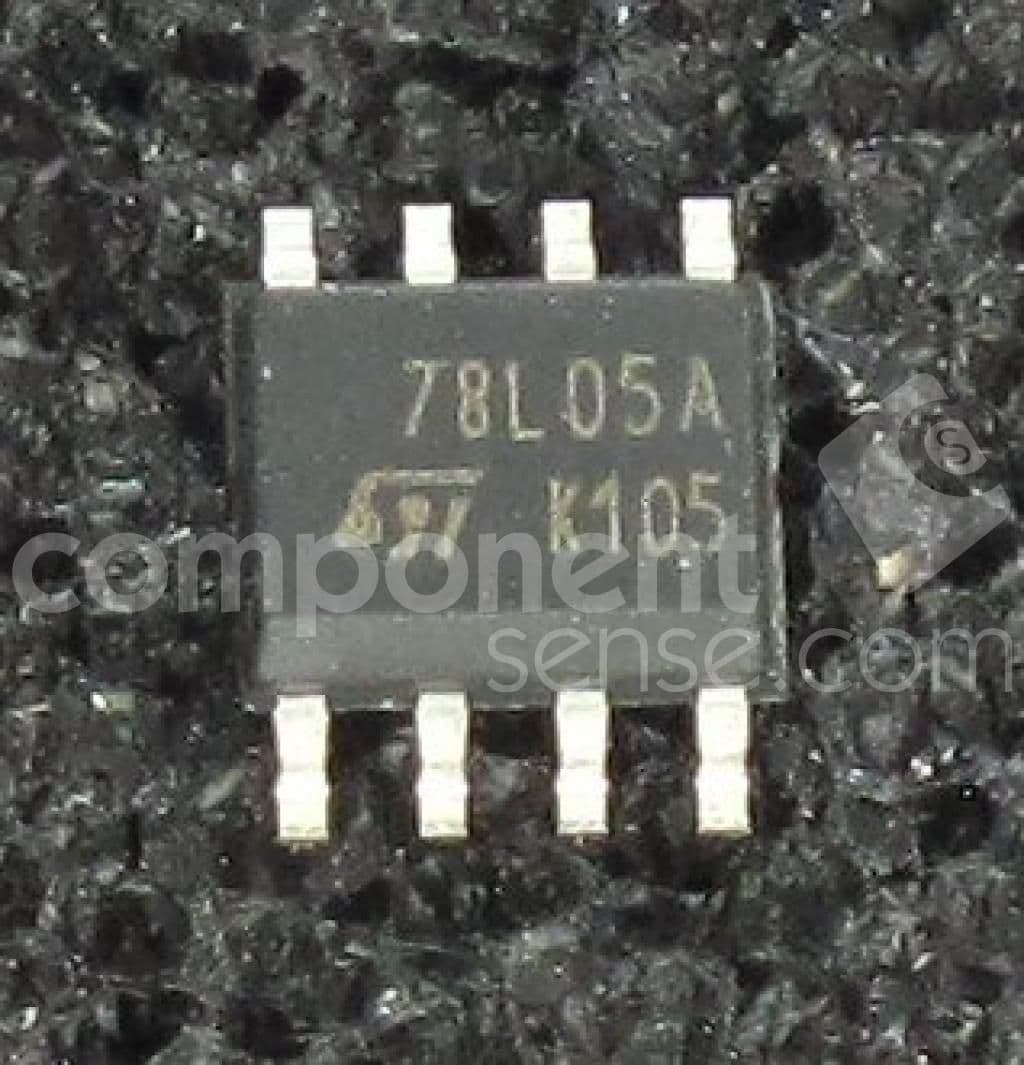

Product Images
