Positive fixed output linear voltage regulator, offering a 5V nominal output voltage with a 100mA maximum output current. Features a low dropout voltage of 1.7V and a maximum input voltage of 30V. Operates across a wide temperature range from -40°C to 125°C. Packaged in a compact SOT-89 surface mount case, measuring 4.6mm in length, 2.6mm in width, and 1.6mm in height. This RoHS compliant component is supplied on tape and reel.
PackageSOT-89
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L05ABUTR technical specifications.
General
Package/Case
SOT-89
Dropout Voltage
1.7V
Height
1.6mm
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
30V
Min Input Voltage
7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Min Output Voltage
5V
Max Supply Current
6mA
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
49dB
Quiescent Current
6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L05ABUTR Datasheet
Download the complete datasheet for Stmicroelectronics L78L05ABUTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

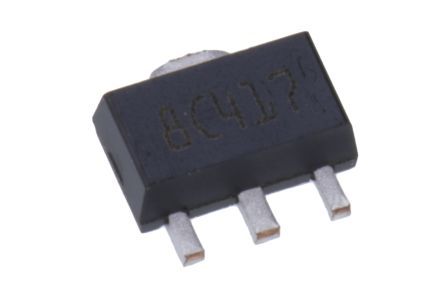

Product Images
