Positive fixed output linear voltage regulator, offering a 5V nominal output voltage with 4% accuracy. Features a 100mA maximum output current and a 1.7V dropout voltage. Operates from a 7V to 30V input voltage range and is housed in a SOT-89 surface mount package. Includes a 6mA maximum supply current and a 49dB PSRR, with a maximum operating temperature of 125°C.
PackageSOT-89
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L05ACUTR technical specifications.
General
Accuracy
4%
Package/Case
SOT-89
Dropout Voltage
1.7V
Height
1.6mm
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
30V
Min Input Voltage
7V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
100mA
Min Output Voltage
5V
Max Supply Current
6mA
Mount
Surface Mount
Nominal Output Voltage
5V
Nominal Supply Current
6mA
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
4%
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
49dB
Quiescent Current
6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.004603oz
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L05ACUTR Datasheet
Download the complete datasheet for Stmicroelectronics L78L05ACUTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

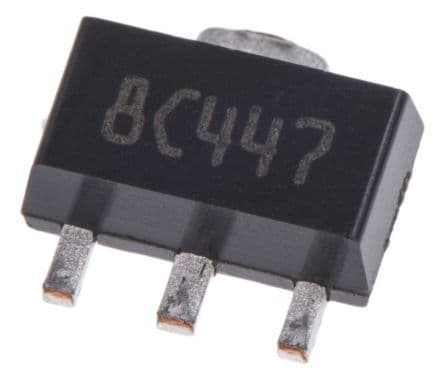

Product Images
