Positive fixed 8V linear voltage regulator, offering 100mA output current. Features a 1.7V dropout voltage and a maximum input voltage of 30V. Operates within a -40°C to 125°C temperature range. Packaged in a SOT-89 surface mount case, this RoHS compliant component is supplied on tape and reel.
PackageSOT-89
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L08ABUTR technical specifications.
General
Package/Case
SOT-89
Dropout Voltage
1.7V
Height
1.6mm
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
30V
Min Input Voltage
10V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
8V
Min Output Voltage
8V
Max Supply Voltage
30V
Min Supply Voltage
10.5V
Mount
Surface Mount
Nominal Output Voltage
8V
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
8V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
45dB
Quiescent Current
6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Weight
0.004603oz
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L08ABUTR Datasheet
Download the complete datasheet for Stmicroelectronics L78L08ABUTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

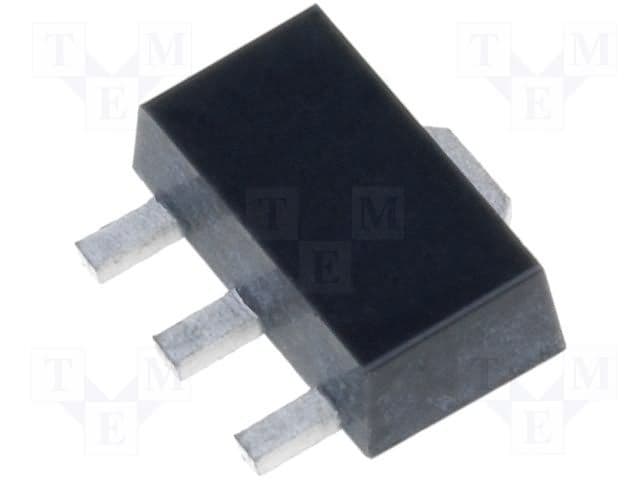

Product Images
