Positive 12V fixed output linear voltage regulator, surface mountable in a SOT-89 package. Features a maximum output current of 100mA, a nominal output voltage of 12V, and a dropout voltage of 1.7V. Operates with a minimum input voltage of 14V and a maximum input voltage of 35V, with a wide operating temperature range from -40°C to 125°C. Offers a Power Supply Rejection Ratio (PSRR) of 42dB and a quiescent current of 6.5mA. This RoHS compliant component is supplied on tape and reel.
PackageSOT-89
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L12ABUTR technical specifications.
General
Package/Case
SOT-89
Dropout Voltage
1.7V
Height
1.6mm
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
35V
Min Input Voltage
14V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Min Output Voltage
12V
Mount
Surface Mount
Nominal Output Voltage
12V
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
12V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
42dB
Quiescent Current
6.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L12ABUTR Datasheet
Download the complete datasheet for Stmicroelectronics L78L12ABUTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

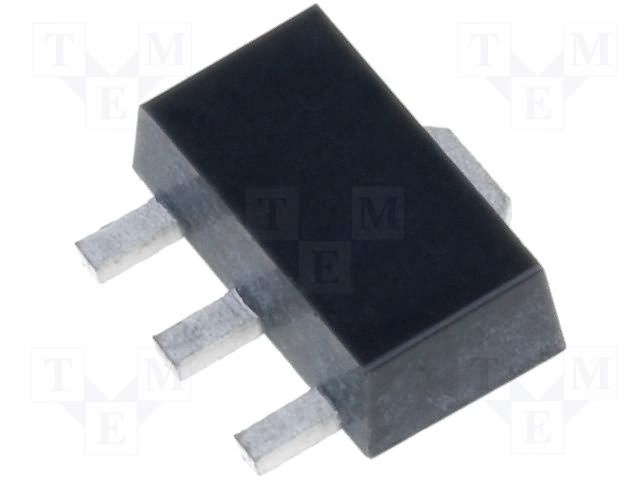

Product Images
