PackageTO-92
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L12ABZ-AP technical specifications.
General
| Package/Case | TO-92 |
| Dropout Voltage | 1.7V |
| Height | 4.95mm |
| Length | 4.95mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 40V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 6.5mA |
| RoHS Compliant | Yes |
| Series | L78L12AB |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L78L12ABZ-AP Datasheet
Download the complete datasheet for Stmicroelectronics L78L12ABZ-AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

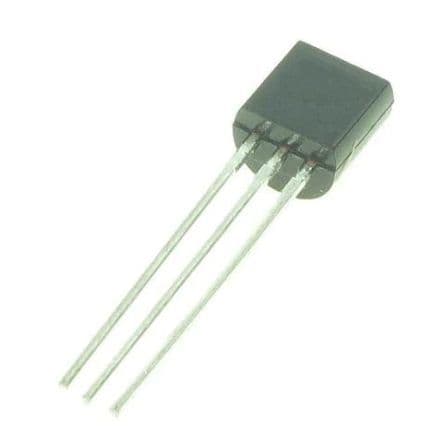

Product Images
