Positive 12V fixed output linear voltage regulator, offering 100mA maximum output current. Features a 1.7V dropout voltage and a wide input voltage range from 14V to 35V. Operates across a temperature range of 0°C to 125°C with 4% voltage accuracy. Packaged in a surface-mount SO case, this RoHS compliant component is supplied on tape and reel.
PackageSO
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L12ACD13TR technical specifications.
General
Accuracy
4%
Package/Case
SO
Dropout Voltage
1.7V
Height
1.65mm
Lead Free
Lead Free
Length
5mm
Max Input Voltage
35V
Min Input Voltage
14V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
100mA
Min Output Voltage
12V
Mount
Surface Mount
Nominal Output Voltage
12V
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
12V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
42dB
Quiescent Current
6.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L12ACD13TR Datasheet
Download the complete datasheet for Stmicroelectronics L78L12ACD13TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

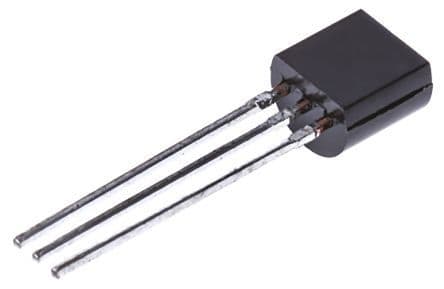

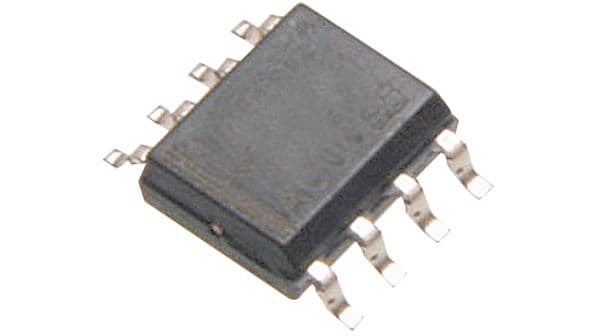

Product Images
