12V positive fixed output linear voltage regulator, offering 100mA maximum output current. Features a 1.7V dropout voltage and 4% output voltage accuracy. Operates with a maximum input voltage of 35V and a minimum input voltage of 14V. Packaged in a SOT-89 surface mount case, this RoHS compliant component has a maximum operating temperature of 125°C.
PackageSOT-89
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L12ACUTR technical specifications.
General
Accuracy
4%
Package/Case
SOT-89
Dropout Voltage
1.7V
Height
1.6mm
Lead Free
Lead Free
Length
4.6mm
Max Input Voltage
35V
Min Input Voltage
14V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
100mA
Min Output Voltage
12V
Max Supply Current
6.5mA
Mount
Surface Mount
Nominal Output Voltage
12V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Fixed
Output Voltage
12V
Output Voltage Accuracy
4%
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
42dB
Quiescent Current
6.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L12ACUTR Datasheet
Download the complete datasheet for Stmicroelectronics L78L12ACUTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

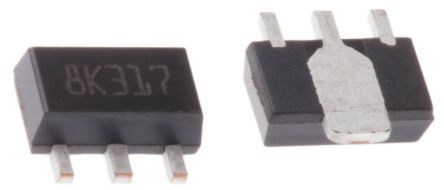

Product Images
