PackageTO-92
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78L12ACZ-AP technical specifications.
General
Accuracy
4%
Package/Case
TO-92
Dropout Voltage
1.7V
Height
4.95mm
Length
4.95mm
Max Input Voltage
35V
Min Input Voltage
40V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
100mA
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
12V
Package Quantity
2000
Packaging
Cut Tape
Polarity
Positive
Quiescent Current
6.5mA
RoHS Compliant
Yes
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L78L12ACZ-AP Datasheet
Download the complete datasheet for Stmicroelectronics L78L12ACZ-AP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

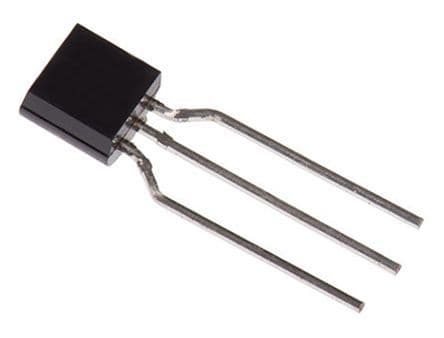

Product Images
