Precision 24V fixed output linear voltage regulator, delivering up to 500mA output current. Features a 2V dropout voltage and a wide input voltage range from 26V to 40V. Operates across a temperature range of 0°C to 150°C with a 5% output voltage tolerance. Packaged in a TO case for through-hole mounting, this single-channel positive regulator offers 50dB PSRR and 6mA quiescent current.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78M24CV technical specifications.
General
| Package/Case | TO |
| Dropout Voltage | 2V |
| Height | 15.75mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 26V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 500mA |
| Min Output Voltage | 24V |
| Mount | Through Hole |
| Nominal Output Voltage | 24V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 24V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 50dB |
| Quiescent Current | 6mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L78M24CV Datasheet
Download the complete datasheet for Stmicroelectronics L78M24CV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

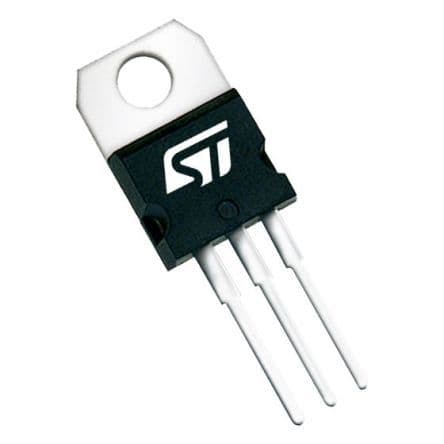

Product Images
