Positive 9V fixed linear voltage regulator, offering a 2A maximum output current. Features a 35V maximum input voltage and a 12V minimum input voltage. Operates within a temperature range of 0°C to 150°C. Housed in a TO package for through-hole mounting. RoHS compliant with a 5% output voltage tolerance.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics L78S09CV technical specifications.
General
| Package/Case | TO |
| Height | 9.15mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 35V |
| Min Input Voltage | 12V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 2A |
| Min Output Voltage | 9V |
| Mount | Through Hole |
| Nominal Output Voltage | 9V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Fixed, Adjustable |
| Output Voltage | 9V |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 47dB |
| Quiescent Current | 8mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Weight | 0.08113oz |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L78S09CV Datasheet
Download the complete datasheet for Stmicroelectronics L78S09CV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

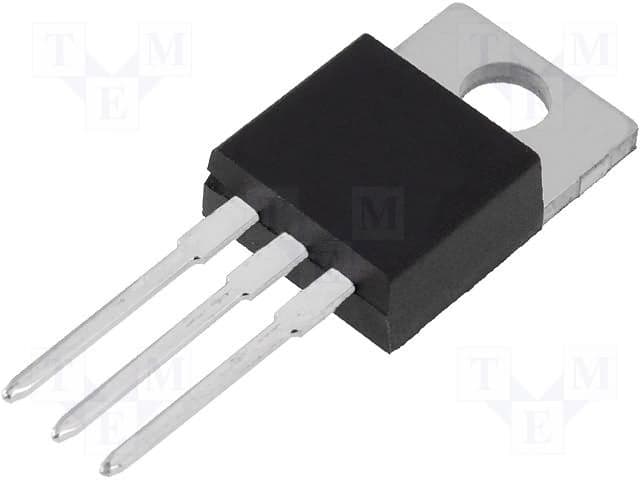

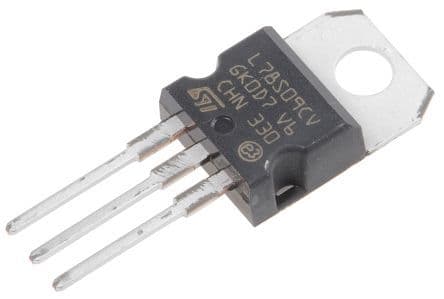

Product Images
