Negative voltage regulator IC featuring a fixed -12V output and 1.5A maximum output current. This through-hole component offers a -14.5V to -35V input voltage range with a 1.1V dropout voltage. Operating from 0°C to 150°C, it is housed in a TO-220 package and is RoHS compliant.
PackageTO-220
MountingThrough Hole
PolarityNegative
Quick Jump:
Technical Specifications
Stmicroelectronics L7912CV technical specifications.
General
Package/Case
TO-220
Dropout Voltage
1.1V
Height
9.15mm
Lead Free
Lead Free
Length
10.4mm
Max Input Voltage
-35V
Min Input Voltage
-14.5V
Max Operating Temperature
150°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Mount
Through Hole
Nominal Output Voltage
-12V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Negative
Output Current
1.5A
Output Type
Fixed
Output Voltage
-12V
Packaging
Rail/Tube
Polarity
Negative
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
3mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
4%
Weight
0.211644oz
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics L7912CV Datasheet
Download the complete datasheet for Stmicroelectronics L7912CV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

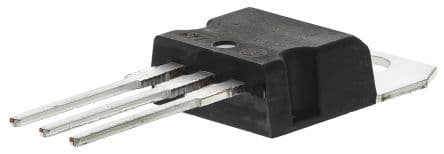

Product Images
