Technical Specifications
Stmicroelectronics L79L05ABUTR technical specifications.
General
| Package/Case | SOT-89 |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Input Voltage | -30V |
| Min Input Voltage | -7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | -5V |
| Package Quantity | 2500 |
| Packaging | Cut Tape |
| Polarity | Negative |
| Power Supply Rejection Ratio (PSRR) | 49dB |
| RoHS Compliant | Yes |
| Series | L79L |
| Weight | 0.004603oz |
| Width | 2.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L79L05ABUTR Datasheet
Download the complete datasheet for Stmicroelectronics L79L05ABUTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

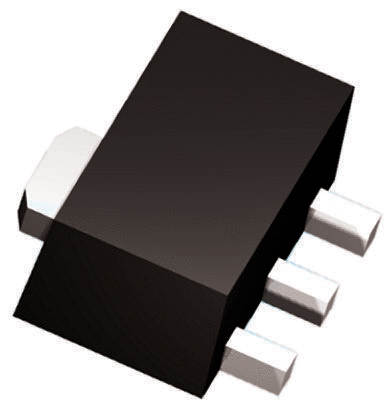

Product Images
