Negative fixed output voltage regulator IC, providing a stable -8V output with 100mA maximum output current. Features a 5% accuracy and a low dropout voltage of 1.7V. Operates within a -30V to -10.5V input voltage range and supports a wide operating temperature range from 0°C to 125°C. Packaged in a compact SO surface mount case, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageSO
MountingSurface Mount
PolarityNegative
Quick Jump:
Technical Specifications
Stmicroelectronics L79L08ACD13TR technical specifications.
General
| Accuracy | 5% |
| Package/Case | SO |
| Dropout Voltage | 1.7V |
| Height | 1.65mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | -30V |
| Min Input Voltage | -10.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 100mA |
| Min Output Voltage | -7.36V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | -8V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Negative |
| Power Supply Rejection Ratio (PSRR) | 45dB |
| Quiescent Current | 6mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L79L08ACD13TR Datasheet
Download the complete datasheet for Stmicroelectronics L79L08ACD13TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

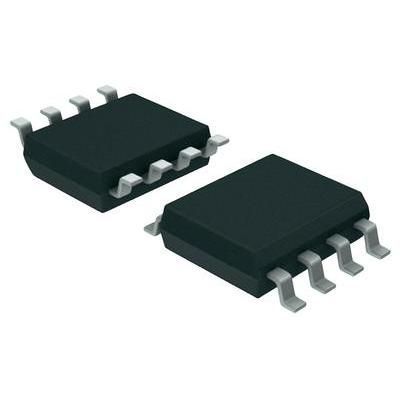

Product Images
