3A low drop positive voltage regulator, featuring a fixed 5V output with 1% accuracy. This power management IC operates with a minimum input voltage of 8V and a maximum of 30V, offering a low dropout voltage of 1.3V. Designed for through-hole mounting in a TO package, it supports a maximum output current of 3A. The regulator boasts a wide operating temperature range from -40°C to 125°C and is RoHS compliant.
PackageTO
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LD1085V50 technical specifications.
General
Accuracy
1%
Package/Case
TO
Dropout Voltage
1.3V
Height
9.15mm
Input Bias Current
5mA
Lead Free
Lead Free
Length
10.4mm
Max Input Voltage
30V
Min Input Voltage
8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Min Output Voltage
5V
Mount
Through Hole
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
1%
Package Quantity
50
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.6mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD1085V50 Datasheet
Download the complete datasheet for Stmicroelectronics LD1085V50 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

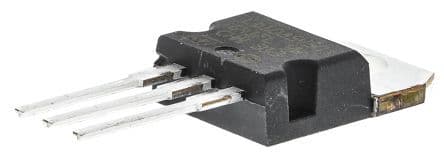

Product Images
