Positive fixed output linear voltage regulator with a 3.3V nominal output voltage and 2% accuracy. Features a maximum output current of 1.2A and a dropout voltage of 1.15V. Operates with a maximum input voltage of 10V and a minimum input voltage of 5.3V. Housed in a 4-pin SOT-223 surface mount package, this RoHS compliant component offers a maximum power dissipation of 12W and an operating temperature range of 0°C to 125°C.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Power12W
Quick Jump:
Technical Specifications
Stmicroelectronics LD1117AS33TR technical specifications.
General
Accuracy
2%
Package/Case
SOT-223
Dropout Voltage
1.15V
Height
1.8mm
Input Bias Current
5mA
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
10V
Min Input Voltage
5.3V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.2A
Min Output Voltage
3.3V
Max Power Dissipation
12W
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2%
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Power Dissipation
12W
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LD1117AS33TR Datasheet
Download the complete datasheet for Stmicroelectronics LD1117AS33TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

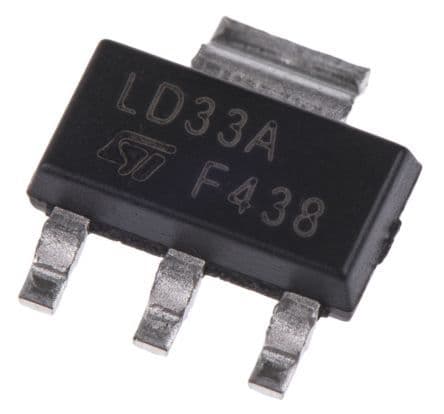

Product Images
