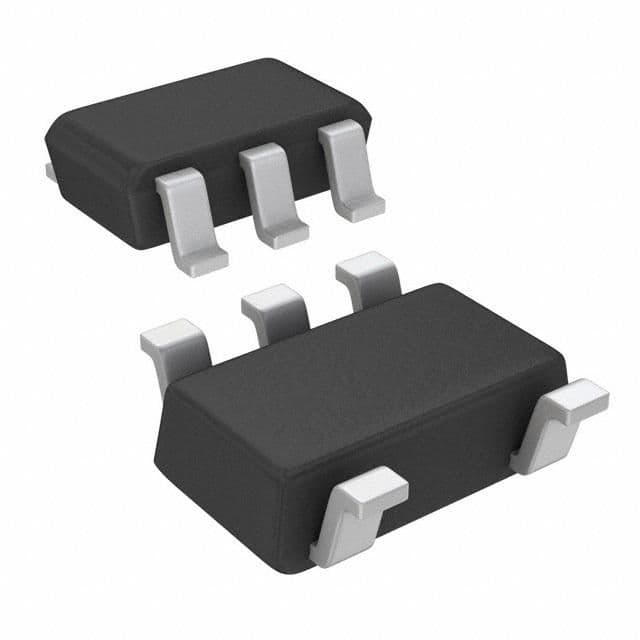

The LD2985AM25R is a single-output linear voltage regulator with a fixed output voltage of 2.5V and an output current of 150mA. It operates from a minimum input voltage of 2.5V and a maximum input voltage of 16V, with a dropout voltage of 280mV. The device is packaged in a SOT-23-5 lead-free package and is suitable for surface mount applications. It has a maximum operating temperature range of -40°C to 125°C and a quiescent current of 150uA. The LD2985AM25R is RoHS compliant and suitable for use in a variety of applications requiring a stable 2.5V output voltage.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Stmicroelectronics LD2985AM25R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-23-5 |
| Dropout Voltage | 280mV |
| Input Bias Current | 80uA |
| Lead Free | Lead Free |
| Max Input Voltage | 16V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.5V |
| Max Supply Current | 4mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 150mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 45dB |
| Quiescent Current | 150uA |
| RoHS Compliant | Yes |
| RoHS | Compliant |
