Stmicroelectronics
LED7708
16 channels x 85 mA LED driver with boost controller and 4-wire serial interface
Frequency1MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LED7708 technical specifications.
General
Dimming
PWM
Frequency
1MHz
Max Input Voltage
36V
Min Input Voltage
3.6V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Mount
Surface Mount
Number of Channels
16
Number of Outputs
16
Output Current per Channel
85mA
Output Voltage
36V
Package Quantity
260
Packaging
Tray
Quiescent Current
9uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LED7708 Datasheet
Download the complete datasheet for Stmicroelectronics LED7708 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

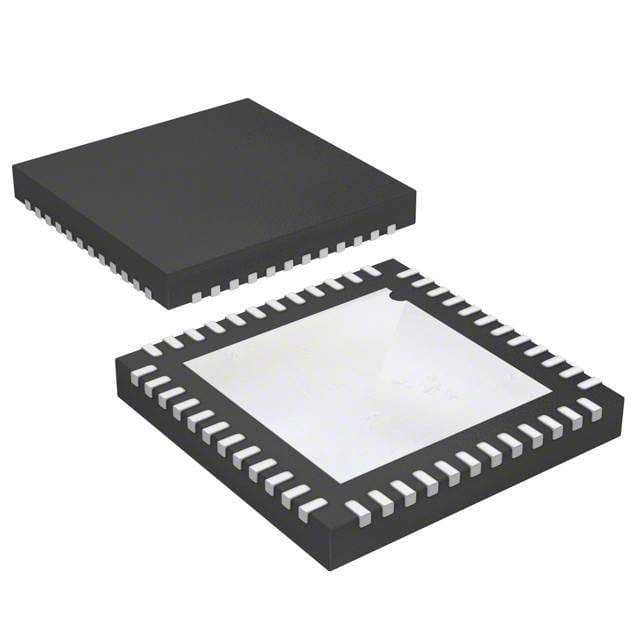

Product Images
