3.3V fixed positive LDO regulator with 500mA output current and 400mV dropout voltage. Features 2% accuracy, 16V maximum input voltage, and operates from -40°C to 125°C. Surface mountable in a TO-252 package, this lead-free component offers a single output and is RoHS compliant.
PackageTO-252
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LF33CDT technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-252 |
| Dropout Voltage | 400mV |
| Height | 2.4mm |
| Input Bias Current | 500uA |
| Lead Free | Lead Free |
| Length | 6.6mm |
| Max Input Voltage | 16V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Rail/Tube |
| Quiescent Current | 500uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LF33CDT Datasheet
Download the complete datasheet for Stmicroelectronics LF33CDT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

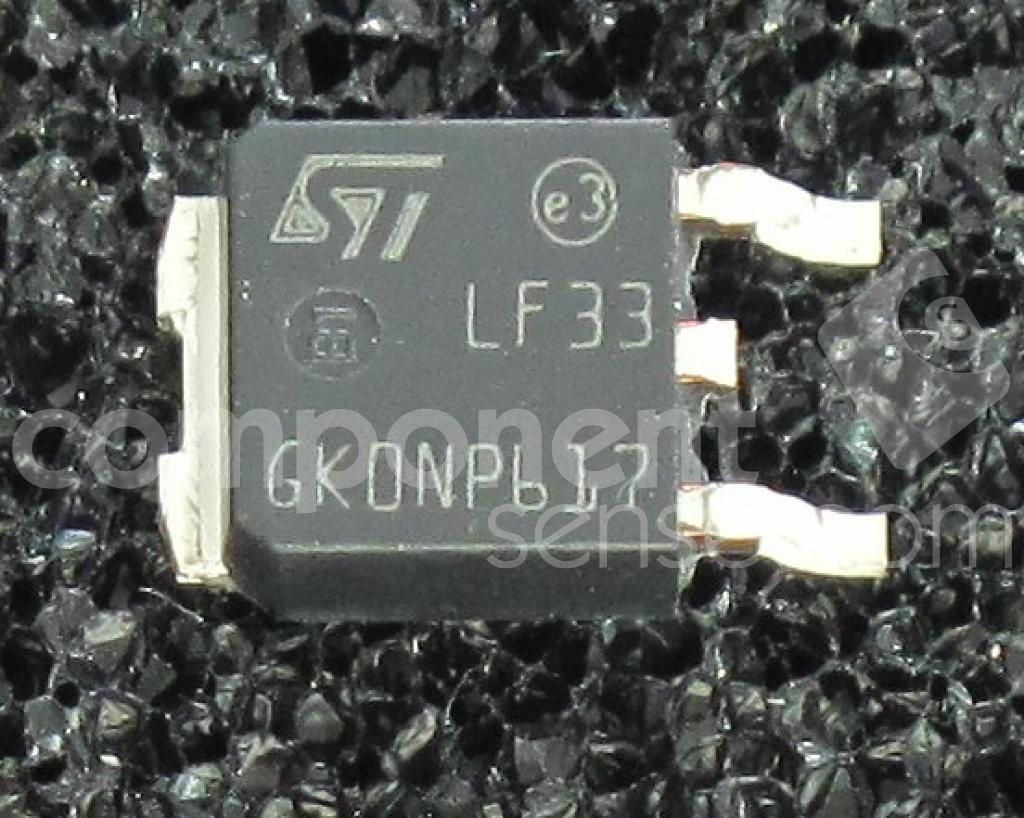

Product Images
