3-axis MEMS accelerometer with selectable full-scale ranges of ±2g or ±8g. Features digital output via I2C and SPI interfaces, a 200Hz bandwidth, and 8-bit resolution. Operates from a 2.16V to 3.6V supply voltage with a typical current consumption of 300µA. Packaged in an LGA format for surface mounting, this component offers a wide operating temperature range from -40°C to 85°C.
PackageLGA
Current300uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LIS302DL technical specifications.
General

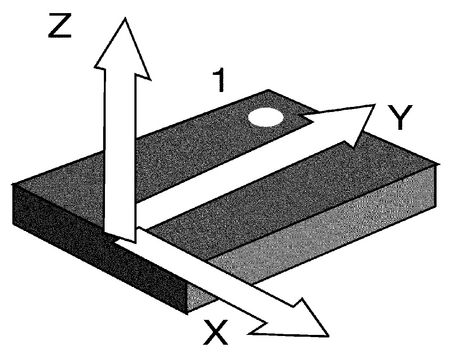

Axis
X, Y, Z
Bandwidth
200Hz
Package/Case
LGA
Depth
3mm
Height
0.92mm
Interface
I2C, SPI
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
3.6V
Min Supply Voltage (DC)
2.5V
Max Supply Voltage
3.6V
Min Supply Voltage
2.16V
Mount
Surface Mount
Operating Supply Current
300uA
Output
DIGITAL
Output Type
Digital, SPI, I2C
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
8b
RoHS Compliant
Yes
Sensor Type
3 Axis
Supply Current
300uA
Termination
SMD/SMT
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LIS302DL Datasheet
Download the complete datasheet for Stmicroelectronics LIS302DL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

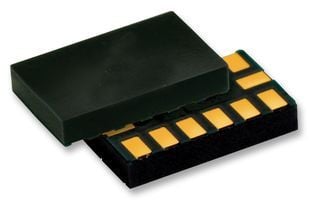

Product Images
