1.8V fixed output, positive polarity, low noise, low drop linear voltage regulator. Features a 150mA maximum output current and a 2.5V to 14V input voltage range. Includes a shutdown function and offers 55dB Power Supply Rejection Ratio (PSRR). Packaged in a SOT-23-5 surface mount case, this RoHS compliant component operates from -30°C to 125°C.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LK112M18TR technical specifications.
General
Package/Case
SOT-23-5
Input Bias Current
175uA
Lead Free
Lead Free
Max Input Voltage
14V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-30°C
Max Output Current
150mA
Min Output Voltage
1.8V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
250uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LK112M18TR Datasheet
Download the complete datasheet for Stmicroelectronics LK112M18TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

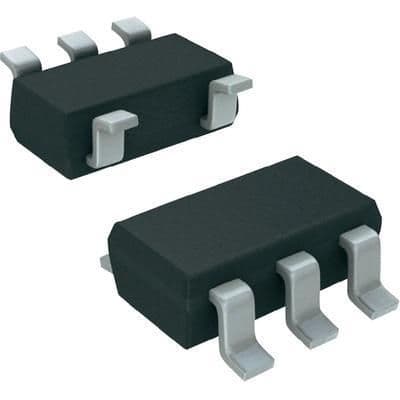

Product Images
