Positive, fixed 2.5V output linear voltage regulator with a 150mA maximum output current. Features a low dropout voltage of 290mV and a shutdown function. Operates with a minimum input voltage of 3V and a maximum input voltage of 14V. Packaged in a compact SOT-23-5 surface mount case, this RoHS compliant component offers low noise operation and a quiescent current of 250uA.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LK112M25TR technical specifications.
General
Package/Case
SOT-23-5
Dropout Voltage
290mV
Height
1.3mm
Input Bias Current
175uA
Lead Free
Lead Free
Length
3mm
Min Current Limit
150mA
Max Input Voltage
14V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
150mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
250uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LK112M25TR Datasheet
Download the complete datasheet for Stmicroelectronics LK112M25TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

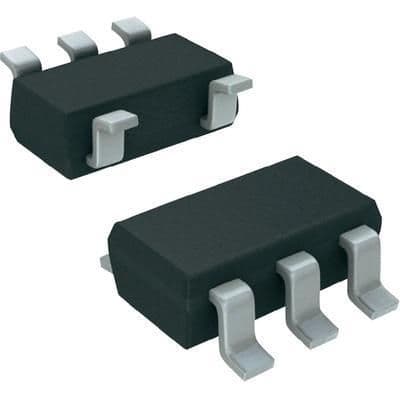

Product Images
