Surface mount linear voltage regulator, SOT-23-5 package, offering a fixed 5V positive output with a maximum output current of 150mA. Features low noise, a low dropout voltage, and a shutdown function. Operates with an input voltage range of 5.5V to 14V, a quiescent current of 250uA, and an input bias current of 175uA. Boasts a Power Supply Rejection Ratio (PSRR) of 55dB and operates across a temperature range of -40°C to 125°C. Lead-free and RoHS compliant.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LK112M50TR technical specifications.
General
Package/Case
SOT-23-5
Height
1.3mm
Input Bias Current
175uA
Lead Free
Lead Free
Length
3mm
Max Input Voltage
14V
Min Input Voltage
5.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
5V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
250uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LK112M50TR Datasheet
Download the complete datasheet for Stmicroelectronics LK112M50TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

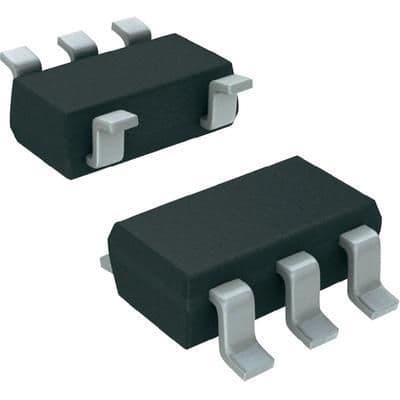

Product Images
