Dual operational amplifier featuring low input bias current, suitable for general-purpose amplification. Offers a 1.1MHz bandwidth and 0.6V/µs slew rate. Operates with supply voltages from 3V to 30V, with a maximum dual supply of ±15V. Housed in a surface-mount SOIC package, this bipolar IC provides 2 channels with a voltage gain of 100dB and a common mode rejection ratio of 70dB.
PackageSOIC
Current1.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LM158DT technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1.1MHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 1.1MHz |
| Height | 1.75mm |
| Input Bias Current | 20nA |
| Input Offset Voltage (Vos) | 2mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Operating Supply Current | 700uA |
| Operating Supply Voltage | 15V |
| Output Current | 40mA |
| Output Current per Channel | 60mA |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.6V/µs |
| Supply Current | 1.2mA |
| Technology | BIPOLAR |
| Voltage Gain | 100dB |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM158DT Datasheet
Download the complete datasheet for Stmicroelectronics LM158DT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

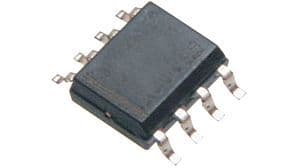

Product Images
