Dual operational amplifier IC featuring low input bias current of 20nA and a gain bandwidth product of 1.1MHz. This general-purpose op-amp offers a voltage gain of 100dB and a slew rate of 0.6V/µs, suitable for a wide operating supply voltage range from 3V to 30V. With a bandwidth of 700kHz and a common mode rejection ratio of 70dB, it provides reliable performance. Packaged in SO for surface mounting, this RoHS compliant component operates efficiently with a typical supply current of 700µA.
PackageSO
Current1.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LM258AD technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 700kHz |
| Package/Case | SO |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 1.1MHz |
| Input Bias Current | 20nA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Operating Supply Current | 700uA |
| Operating Supply Voltage | 15V |
| Output Current | 40mA |
| Output Current per Channel | 60mA |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.6V/µs |
| Supply Current | 1.2mA |
| Technology | BIPOLAR |
| Voltage Gain | 100dB |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM258AD Datasheet
Download the complete datasheet for Stmicroelectronics LM258AD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

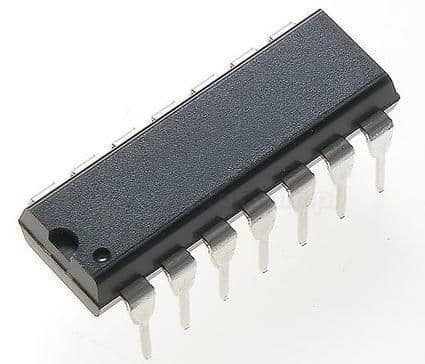

Product Images
