Dual general-purpose comparator IC featuring two independent channels. Operates with a wide supply voltage range from 1V to 36V, with a maximum dual supply of ±18V. Offers a low input bias current of 250nA and an input offset voltage of 7mV. Surface mountable in an 8-pin SOIC package, this component boasts a 1.3µs response time and 16mA output current. Designed for automotive applications, it is RoHS compliant and operates across a temperature range of -40°C to 125°C.
PackageSOIC
Current1mA
MountingSurface Mount
Power710mW
Quick Jump:
Technical Specifications
Stmicroelectronics LM2903YDT technical specifications.
General
| Package/Case | SOIC |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1V |
| Max Input Current | 250nA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Natural Thermal Resistance | 125°C/W |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current | 16mA |
| Output Type | TTL |
| Packaging | Tape and Reel |
| Power Dissipation | 710mW |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Response Time | 1.3us |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Supply Current | 1mA |
| Technology | BIPOLAR |
| Type | General Purpose |
| Voltage Gain | 106.02dB |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM2903YDT Datasheet
Download the complete datasheet for Stmicroelectronics LM2903YDT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

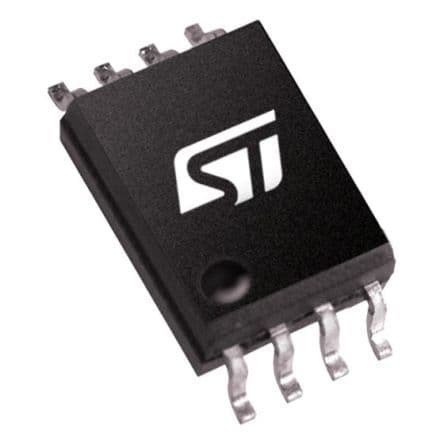

Product Images
