Technical Specifications
Stmicroelectronics LM2903YST technical specifications.
General
| Package/Case | TSSOP |
| Common Mode Rejection Ratio | 79dB |
| Height | 1.05mm |
| Input Bias Current | 250nA |
| Length | 4.5mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1V |
| Max Input Current | 250nA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Output Current | 16mA |
| Output Type | TTL |
| Packaging | Cut Tape |
| Quiescent Current | 2.5mA |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Type | General Purpose |
| Voltage Gain | 106.02dB |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM2903YST Datasheet
Download the complete datasheet for Stmicroelectronics LM2903YST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

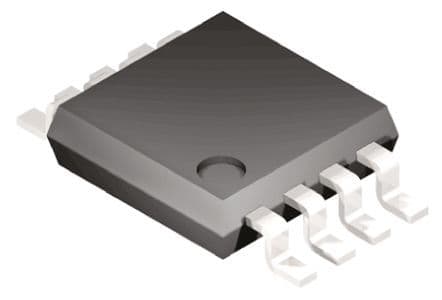

Product Images
