Positive adjustable linear voltage regulator IC with an output current of 1.5A and an adjustable output voltage range from 1.2V to 37V. Features a maximum input voltage of 40V and a minimum input voltage of 4.2V, with a Power Supply Rejection Ratio (PSRR) of 80dB. Operates within a temperature range of 0°C to 125°C and is housed in a TO-220 package. This lead-free, RoHS compliant component is ideal for power management applications.
PackageTO-220
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LM317T technical specifications.
General
| Package/Case | TO-220 |
| Height | 9.15mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| RoHS Compliant | Yes |
| Series | LM317 |
| Weight | 0.08113oz |
| Width | 4.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM317T Datasheet
Download the complete datasheet for Stmicroelectronics LM317T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

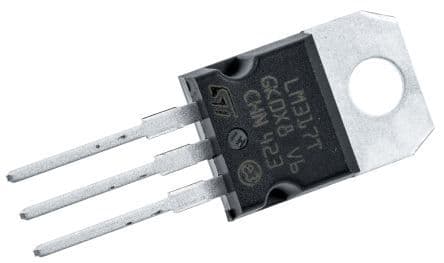

Product Images
