Dual high-speed comparator IC featuring two independent comparator elements. Operates with a supply voltage range of 2.5V to 30V, with a typical operating voltage of 15V. Offers a fast response time of 80ns and TTL compatible output. Packaged in a surface-mount SOIC case, this component is RoHS compliant and operates within a temperature range of 0°C to 70°C.
PackageSOIC
Current8mA
MountingSurface Mount
Power830mW
Quick Jump:
Technical Specifications
Stmicroelectronics LM319DT technical specifications.
General
Package/Case
SOIC
Height
1.65mm
Input Bias Current
1uA
Input Offset Voltage (Vos)
8mV
Lead Free
Lead Free
Length
8.75mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
2.5V
Max Input Current
1uA
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
830mW
Max Supply Current
8mA
Max Supply Voltage
30V
Min Supply Voltage
5V
Mount
Surface Mount
Natural Thermal Resistance
105°C/W
Number of Channels
2
Number of Elements
2
Operating Supply Voltage
15V
Output Compatibility
TTL
Output Current
200nA
Output Current per Channel
200nA
Output Type
TTL
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
830mW
Quiescent Current
12.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
80ns
RoHS Compliant
Yes
Supply Current
8mA
Technology
BIPOLAR
Type
General Purpose
Voltage Gain
92.04dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LM319DT Datasheet
Download the complete datasheet for Stmicroelectronics LM319DT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

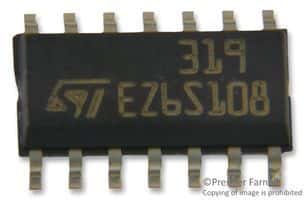

Product Images
