Quad operational amplifier featuring a 1.3MHz bandwidth and 0.4V/µs slew rate. This general-purpose amplifier offers low input bias current of 150nA and a voltage gain of 100dB. Designed for surface mounting in an SO package, it operates with dual supply voltages from 1.5V to 15V, or a single supply from 3V to 30V. The device boasts a common mode rejection ratio of 70dB and a maximum operating temperature of 70°C.
PackageSO
Current1.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LM324D technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.3MHz
Package/Case
SO
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1.3MHz
Height
1.65mm
Input Bias Current
150nA
Input Offset Voltage (Vos)
7mV
Input Offset Voltage-Max
7mV
Lead Free
Lead Free
Length
8.75mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
1.5V
Max Input Voltage
28.5V
Min Input Voltage
0V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
30V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.5mA
Operating Supply Voltage
15V
Output Current
40mA
Output Current per Channel
70mA
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.4V/µs
Slew Rate-Nom
0.4V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
1.3MHz
Voltage Gain
100dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LM324D Datasheet
Download the complete datasheet for Stmicroelectronics LM324D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

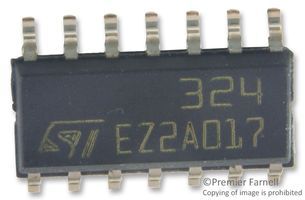

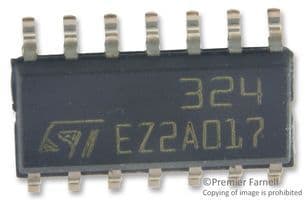

Product Images
