Quad operational amplifier featuring a 1MHz bandwidth and 100dB voltage gain. This general-purpose op-amp offers low input bias current of 20nA and a gain bandwidth product of 1.3MHz. Designed for through-hole mounting in a DIP package, it operates with dual supply voltages from ±1.5V to ±15V, or single supply from 3V to 30V. The device boasts a slew rate of 0.4V/µs and a typical operating supply current of 1.5mA.
PackageDIP
Current1.2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics LM324N technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | DIP |
| Dual Supply Voltage | 9V |
| Gain | 100dB |
| Gain Bandwidth Product | 1.3MHz |
| Height | 5.1mm |
| Input Bias Current | 20nA |
| Input Offset Voltage (Vos) | 2mV |
| Input Offset Voltage-Max | 7mV |
| Lead Free | Lead Free |
| Length | 20mm |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Operating Supply Current | 1.5mA |
| Operating Supply Voltage | 15V |
| Output Current | 40mA |
| Output Current per Channel | 70mA |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.4V/µs |
| Slew Rate-Nom | 0.4V/µs |
| Supply Current | 1.2mA |
| Technology | BIPOLAR |
| Voltage Gain | 100dB |
| Width | 7.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM324N Datasheet
Download the complete datasheet for Stmicroelectronics LM324N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

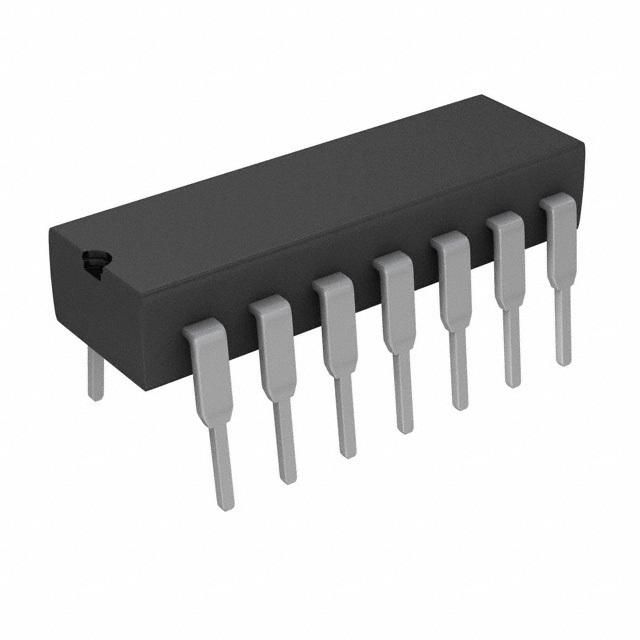

Product Images
