Dual operational amplifier featuring low input bias current and a 1.1MHz gain bandwidth product. This general-purpose op-amp offers a 0.6V/µs slew rate and 100dB voltage gain, operating from a 3V to 30V supply range. Designed for surface mount applications in a DFN package, it provides 60mA output current per channel and a 700µA operating supply current. RoHS compliant and lead-free, this bipolar IC is suitable for a wide range of electronic circuits.
PackageDFN
Current1.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LM358QT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.1MHz
Package/Case
DFN
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1.1MHz
Input Bias Current
20nA
Input Offset Voltage (Vos)
7mV
Input Offset Voltage-Max
2mV
Lead Free
Lead Free
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
30V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
2
Number of Elements
2
Operating Supply Current
700uA
Operating Supply Voltage
15V
Output Current
40mA
Output Current per Channel
60mA
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
0.6V/µs
Slew Rate-Nom
0.6V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
1.1MHz
Voltage Gain
100dB
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LM358QT Datasheet
Download the complete datasheet for Stmicroelectronics LM358QT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

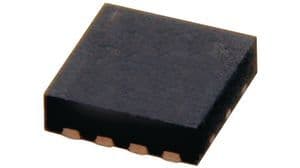

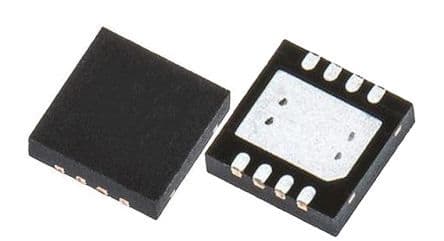

Product Images
