The LM723N is a single output, adjustable linear voltage regulator with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It is available in a DIP-14 package and is RoHS compliant. The regulator can supply an output current of up to 150mA and has a maximum input voltage of 40V. It is suitable for use in a variety of applications, including those requiring a positive output voltage.
PackageDIP
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Stmicroelectronics LM723N technical specifications.
General
| Package/Case | DIP |
| Lead Free | Lead Free |
| Max Input Voltage | 40V |
| Min Input Voltage | 9.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 150mA |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| RoHS Compliant | Yes |
| Series | LM723 |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM723N Datasheet
Download the complete datasheet for Stmicroelectronics LM723N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

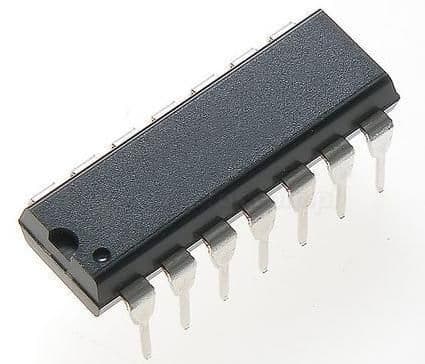

Product Images
