Dual-channel, Class-AB audio amplifier IC featuring a 15MHz bandwidth and 7V/µs slew rate. This surface-mount component offers a 2.5V to 30V dual supply voltage range with an 80dB common mode rejection ratio. Operating with a maximum supply current of 8mA, it provides 100dB voltage gain and is housed in a lead-free, 8-pin SOIC package.
PackageSOIC
Current8mA
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Stmicroelectronics LM833DT technical specifications.
General
| Bandwidth | 15MHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 80dB |
| Dual Supply Voltage | 12V |
| Gain Bandwidth Product | 15MHz |
| Height | 1.65mm |
| Input Bias Current | 300nA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 2.5V |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Supply Current | 8mA |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 5V |
| Mount | Surface Mount |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 4mA |
| Operating Supply Voltage | 28V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 7V/µs |
| Supply Current | 8mA |
| Supply Type | Dual |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 15MHz |
| Voltage Gain | 100dB |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LM833DT Datasheet
Download the complete datasheet for Stmicroelectronics LM833DT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

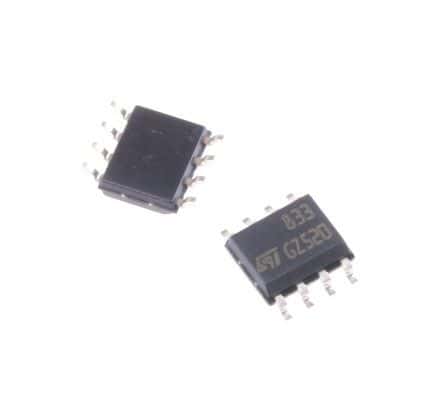

Product Images
