General-purpose, single-channel operational amplifier with a 1.3MHz gain bandwidth product and 0.7V/µs slew rate. Features a 1mV input offset voltage, 27nA input bias current, and 72dB common mode rejection ratio. Operates from a 2.7V to 5.5V supply voltage with a typical supply current of 130µA. Packaged in SC for surface mounting, this RoHS compliant component offers a 100dB voltage gain and 46mA output current.
PackageSC
Current220uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LMV321LICT technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SC |
| Common Mode Rejection Ratio | 72dB |
| Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 27nA |
| Input Offset Voltage (Vos) | 1mV |
| Input Offset Voltage-Max | 1mV |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 130uA |
| Output Current | 46mA |
| Output Current per Channel | 70mA |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.7V/µs |
| Slew Rate-Nom | 0.7V/µs |
| Supply Current | 220uA |
| Unity Gain Bandwidth Product | 1.3MHz |
| Voltage Gain | 100dB |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LMV321LICT Datasheet
Download the complete datasheet for Stmicroelectronics LMV321LICT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

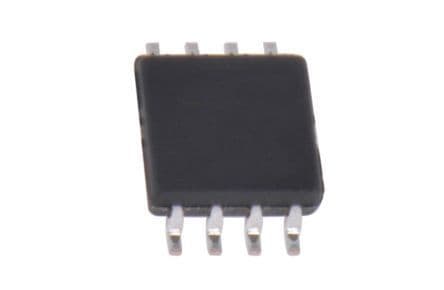

Product Images
