Unidirectional TVS Diode, 1800W peak pulse power, 3kW peak pulse power, with a 35V clamping voltage and 22V minimum breakdown voltage. Features a 20V reverse standoff voltage and 1µA leakage current. Operates across a -55°C to 150°C temperature range. Housed in a DO-201 plastic package with through-hole mounting. RoHS compliant.
PackageDO-201
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics LNBTVS4-220 technical specifications.
General
| Package/Case | DO-201 |
| Clamping Voltage | 35V |
| Diameter | 5.3mm |
| Diode Type | ZENER |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 9.5mm |
| Min Breakdown Voltage | 22V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.8kW |
| Max Surge Current | 331A |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 20V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 331A |
| Peak Pulse Power | 3kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 22V |
| Reverse Standoff Voltage | 20V |
| RoHS Compliant | Yes |
| Series | LNBTVS |
| Termination | SMD/SMT |
| DC Rated Voltage | 22V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LNBTVS4-220 Datasheet
Download the complete datasheet for Stmicroelectronics LNBTVS4-220 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

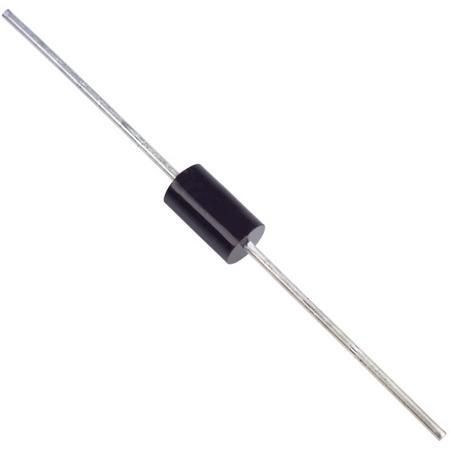

Product Images
