Unidirectional Transient Voltage Suppressor (TVS) diode for low noise block protection. Features a 22V DC rated voltage and 35V clamping voltage. Offers a low capacitance of 3.5pF and a peak pulse power of 3kW. Packaged in a DO-214AB surface mount case, this RoHS compliant component operates from -55°C to 150°C.
PackageDO-214AB
Capacitance3.5pF
Voltage Rating20V
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LNBTVS4-220S technical specifications.
General
| Capacitance | 3.5pF |
| Package/Case | DO-214AB |
| Clamping Voltage | 35V |
| Depth | 6.25mm |
| Direction | Unidirectional |
| Height | 2.45mm |
| Lead Free | Lead Free |
| Leakage Current | 200nA |
| Length | 7.15mm |
| Max Breakdown Voltage | 24.2V |
| Min Breakdown Voltage | 22V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.8kW |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 331A |
| Mount | Surface Mount |
| Operating Supply Voltage | 20V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 334A |
| Peak Pulse Power | 3kW |
| Polarity | Unidirectional |
| Power Dissipation | 5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 20V |
| RoHS Compliant | Yes |
| Series | LNBTVS, TRANSIL™ |
| Termination | SMD/SMT |
| DC Rated Voltage | 22V |
| Width | 6.25mm |
| Working Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LNBTVS4-220S Datasheet
Download the complete datasheet for Stmicroelectronics LNBTVS4-220S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

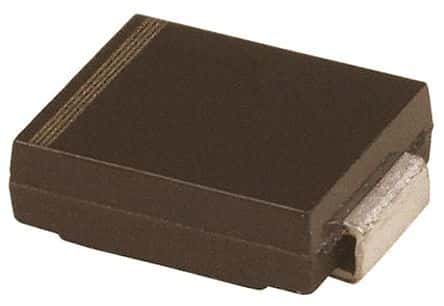

Product Images
