Unidirectional Transient Voltage Suppressor (TVS) diode in SMC package for low noise block protection. Features a 20V reverse standoff voltage, 22V minimum breakdown voltage, and 24.2V maximum breakdown voltage. Offers a 35V clamping voltage at 10A and handles a peak pulse current of 334A with 3kW peak pulse power. Operates across a wide temperature range of -55°C to 150°C, with a low leakage current of 200nA at 20V. This surface mount device provides 5W power dissipation and is RoHS compliant.
PackageSMC
Voltage Rating20V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Stmicroelectronics LNBTVS4-221S technical specifications.
General
Package/Case
SMC
Clamping Voltage
35V
Depth
6.25mm
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
200nA
Length
7.15mm
Max Breakdown Voltage
24.2V
Min Breakdown Voltage
22V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
5W
Max Surge Current
331A
Mount
Surface Mount
Number of Unidirectional Channels
1
Operating Supply Voltage
20V
Package Quantity
2500
Packaging
Tape and Reel
Peak Pulse Current
334A
Peak Pulse Power
3kW
Polarity
Unidirectional
Power Dissipation
5W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
20V
RoHS Compliant
Yes
Series
LNBTVS, TRANSIL™
Termination
Axial
DC Rated Voltage
22V
Width
6.25mm
Working Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics LNBTVS4-221S Datasheet
Download the complete datasheet for Stmicroelectronics LNBTVS4-221S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

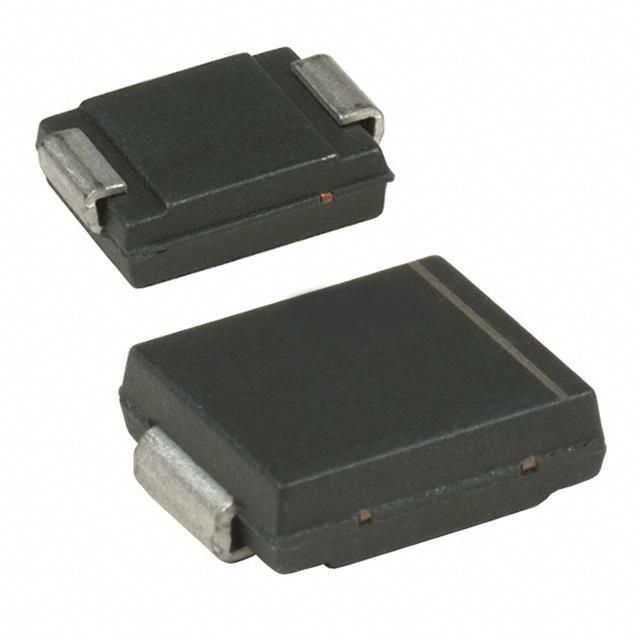

Product Images
