Unidirectional Transient Voltage Suppressor (TVS) diode in SMC package for low noise block protection. Features a 28V working voltage, 45V clamping voltage, and 30V minimum breakdown voltage. Offers a peak pulse current of 500A and 3kW maximum power dissipation. Operates across a wide temperature range from -55°C to 150°C with a low leakage current of 200nA. This surface mount component boasts a low capacitance of 5pF.
PackageSMC
Capacitance5pF
Voltage Rating28V
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics LNBTVS6-304S technical specifications.
General
| Capacitance | 5pF |
| Package/Case | SMC |
| Clamping Voltage | 45V |
| Depth | 6.25mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Leakage Current | 200nA |
| Length | 7.15mm |
| Min Breakdown Voltage | 30V |
| Max Input Voltage | 28V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 3kW |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 500A |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 28V |
| RoHS Compliant | Yes |
| Series | LNBTVS, TRANSIL™ |
| Working Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics LNBTVS6-304S Datasheet
Download the complete datasheet for Stmicroelectronics LNBTVS6-304S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

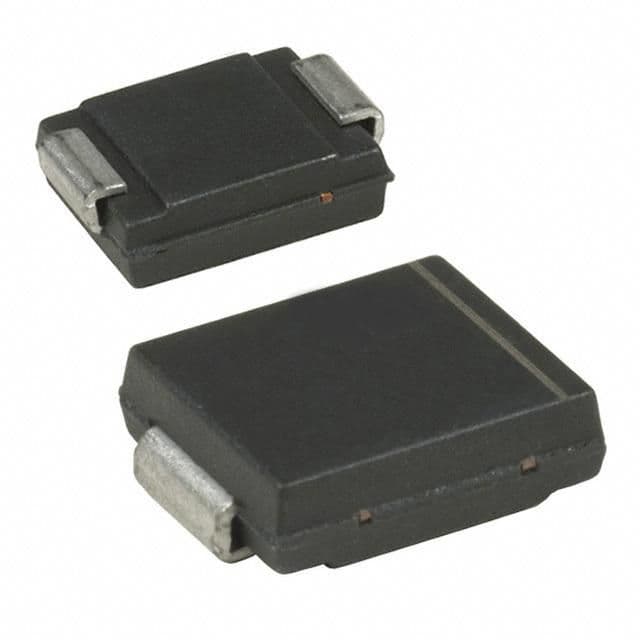

Product Images
