256 Kbit Serial I²C Bus EEPROM for surface mount applications. Features 256Kb non-volatile memory with a 32K x 8 organization. Operates with an I²C, Serial, 2-Wire interface at frequencies up to 1MHz, with a maximum operating supply voltage of 5.5V. Offers a 450ns access time and a wide operating temperature range of -40°C to 85°C. Packaged in a compact TSSOP for efficient integration.
Frequency1MHz
PackageTSSOP
Current2.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M24256-BRDW6TP technical specifications.
General
| Access Time | 450ns |
| Access Time-Max | 450ns |
| Package/Case | TSSOP |
| Density | 256Kb |
| Frequency | 1MHz |
| Height | 1mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Memory Size | 256Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 32KX8 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 2.5mA |
| Supply Voltage-Nom | 5.5V |
| Width | 4.4mm |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M24256-BRDW6TP Datasheet
Download the complete datasheet for Stmicroelectronics M24256-BRDW6TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

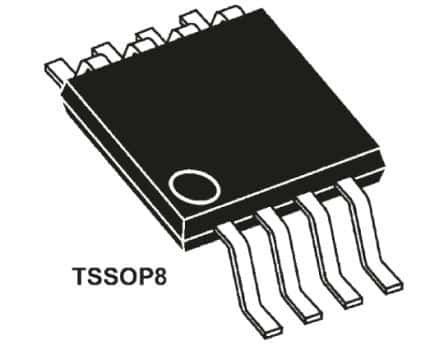

Product Images
