256 Kbit Serial I²C Bus EEPROM for surface mount applications. Features 256Kb density with a 32K x 8 organization, operating at up to 1MHz with a maximum supply voltage of 5.5V. This EEPROM offers a fast access time of 450ns and utilizes a 2-wire serial interface. Packaged in SOIC with dimensions of 4.9mm (L) x 3.9mm (W) x 1.25mm (H), it operates within a temperature range of -40°C to 85°C and is RoHS compliant.
Frequency1MHz
PackageSOIC
Current2.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M24256-BRMN6P technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 450ns |
| Package/Case | SOIC |
| Density | 256Kb |
| Frequency | 1MHz |
| Height | 1.25mm |
| Interface | I2C, Serial, 2-Wire |
| Length | 4.9mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 256Kb |
| Memory Type | EEPROM, |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 32KX8 |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 2.5mA |
| Width | 3.9mm |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M24256-BRMN6P Datasheet
Download the complete datasheet for Stmicroelectronics M24256-BRMN6P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

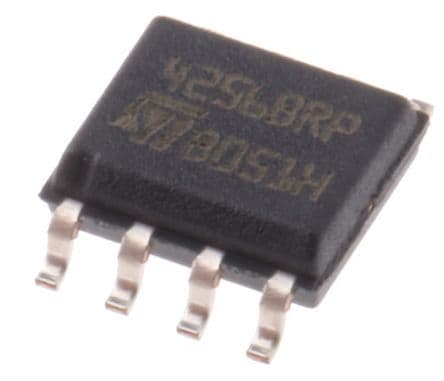

Product Images
