512 Kbit serial I²C bus EEPROM, featuring a 64K x 8 organization and non-volatile memory type. This surface mount device operates with an I2C serial interface, supporting frequencies up to 1MHz. It offers a wide operating supply voltage range from 1.8V to 5.5V, with a nominal 5V operation. Access time is a maximum of 500ns, and write cycle time is 5ms. Packaged in TSSOP, this RoHS compliant component is available on tape and reel.
Frequency1MHz
PackageTSSOP
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M24512-RDW6TP technical specifications.
General
| Access Time | 500ns |
| Access Time-Max | 500ns |
| Package/Case | TSSOP |
| Density | 512Kb |
| Frequency | 1MHz |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 512Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 64KX8 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Supply Voltage-Nom | 5.5V |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M24512-RDW6TP Datasheet
Download the complete datasheet for Stmicroelectronics M24512-RDW6TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

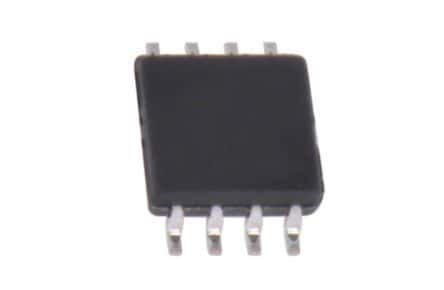

Product Images
