16 Kbit serial I²C bus EEPROM for surface mount applications. Features a 2KX8 organization with 16Kb density, operating at up to 400kHz. Offers a wide operating voltage range of 2.5V to 5.5V with a typical supply current of 2mA. Access time is 900ns, and write protection is supported. Packaged in a lead-free SOIC case, ideal for industrial temperature ranges from -40°C to 85°C.
Frequency400kHz
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M24C16-WMN6TP technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Package/Case | SOIC |
| Density | 16Kb |
| Frequency | 400kHz |
| Height | 1.25mm |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16Kb |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Words | 2000 |
| Operating Supply Voltage | 5V |
| Organization | 2KX8 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Programming Voltage | 5.5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Supply Voltage-Nom | 5.5V |
| Width | 3.9mm |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M24C16-WMN6TP Datasheet
Download the complete datasheet for Stmicroelectronics M24C16-WMN6TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

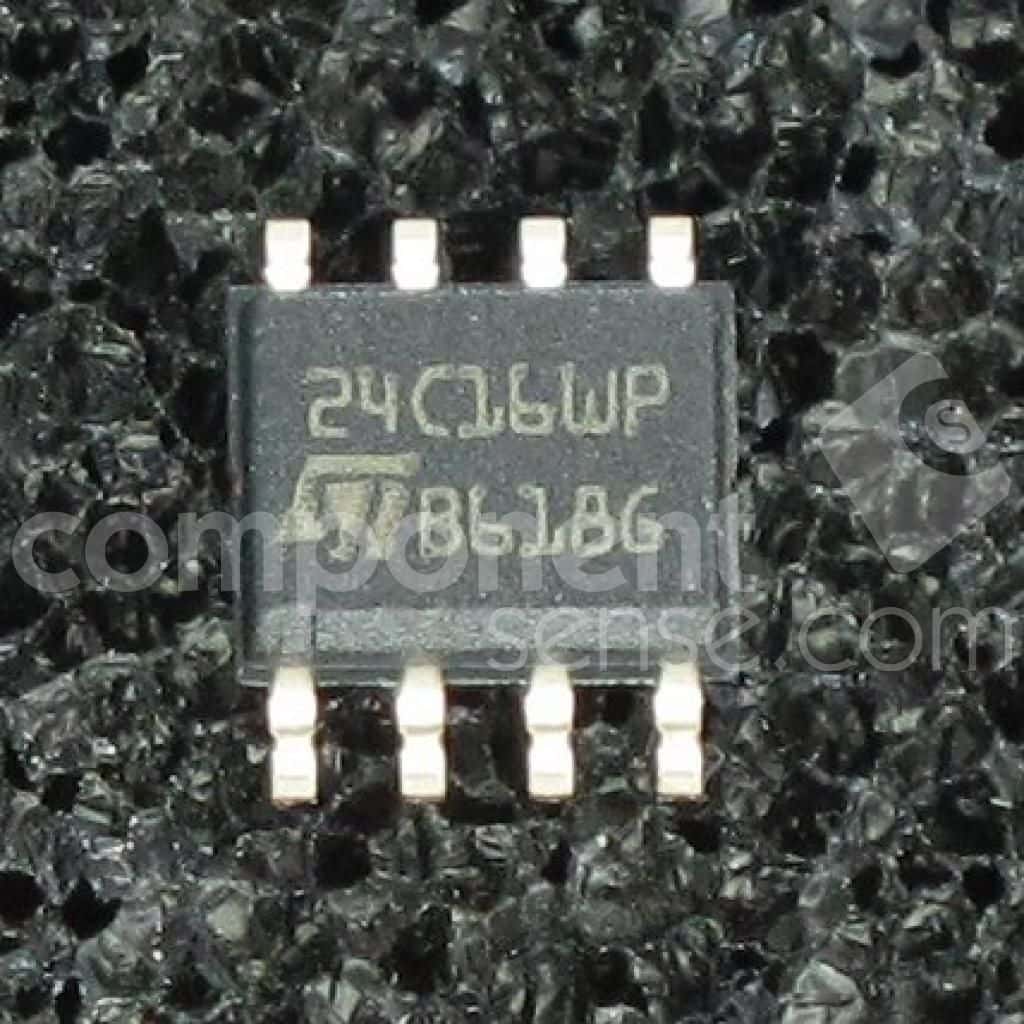

Product Images
