64 Kbit serial I²C bus EEPROM for surface mount applications. Features 8K x 8 organization with a maximum operating frequency of 400kHz and a 450ns access time. Operates from 2.5V to 5.5V supply voltage, with a maximum supply current of 5mA. Packaged in a lead-free SOIC case, this non-volatile memory component offers write protection and a maximum operating temperature of 85°C.
Frequency1MHz
PackageSOIC
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics M24C64-WMN6P technical specifications.
General
Access Time
450ns
Access Time-Max
450ns
Package/Case
SOIC
Density
64Kb
Frequency
1MHz
Height
1.25mm
Interface
I2C, Serial
Lead Free
Lead Free
Length
4.9mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Memory Size
64Kb
Memory Type
Non-Volatile, , EEPROM
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Organization
8KX8
Package Quantity
2000
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Width
3.9mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M24C64-WMN6P Datasheet
Download the complete datasheet for Stmicroelectronics M24C64-WMN6P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

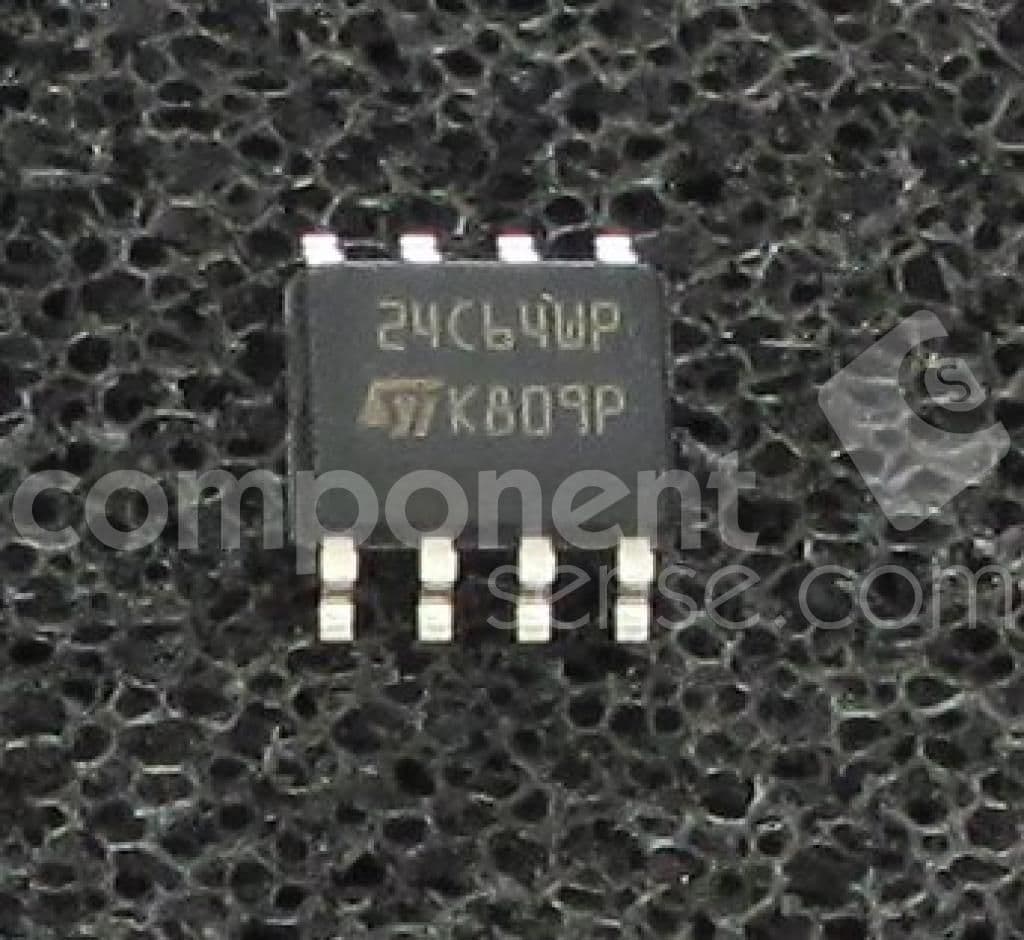

Product Images
