1Mb EPROM memory IC featuring a 128K x 8 organization and 120ns access time. This non-volatile, windowed ceramic DIP-32 component offers a parallel interface and operates from a 4.5V to 5.5V supply voltage, with a nominal 5V requirement. It supports through-hole mounting and has a commercial temperature grade ranging from 0°C to 70°C. The device is RoHS compliant and lead-free.
Frequency120GHz
PackageDIP
Voltage5V
Current50mA
Quick Jump:
Technical Specifications
Stmicroelectronics M27C1001-12F1 technical specifications.
General
Access Time
120ns
Access Time-Max
120ns
Package/Case
DIP
Density
1Mb
Frequency
120GHz
Height
4.5mm
Interface
Parallel
Lead Free
Lead Free
Length
42.04mm
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
Non-Volatile, , EPROM, OTP
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Through Hole
Operating Supply Current
50mA
Operating Supply Voltage
5V
Organization
128KX8
Packaging
Rail/Tube
Programming Voltage
12.75V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
50mA
Supply Voltage-Nom
5V
Temperature Grade
COMMERCIAL
Voltage
5V
Width
13.36mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics M27C1001-12F1 Datasheet
Download the complete datasheet for Stmicroelectronics M27C1001-12F1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

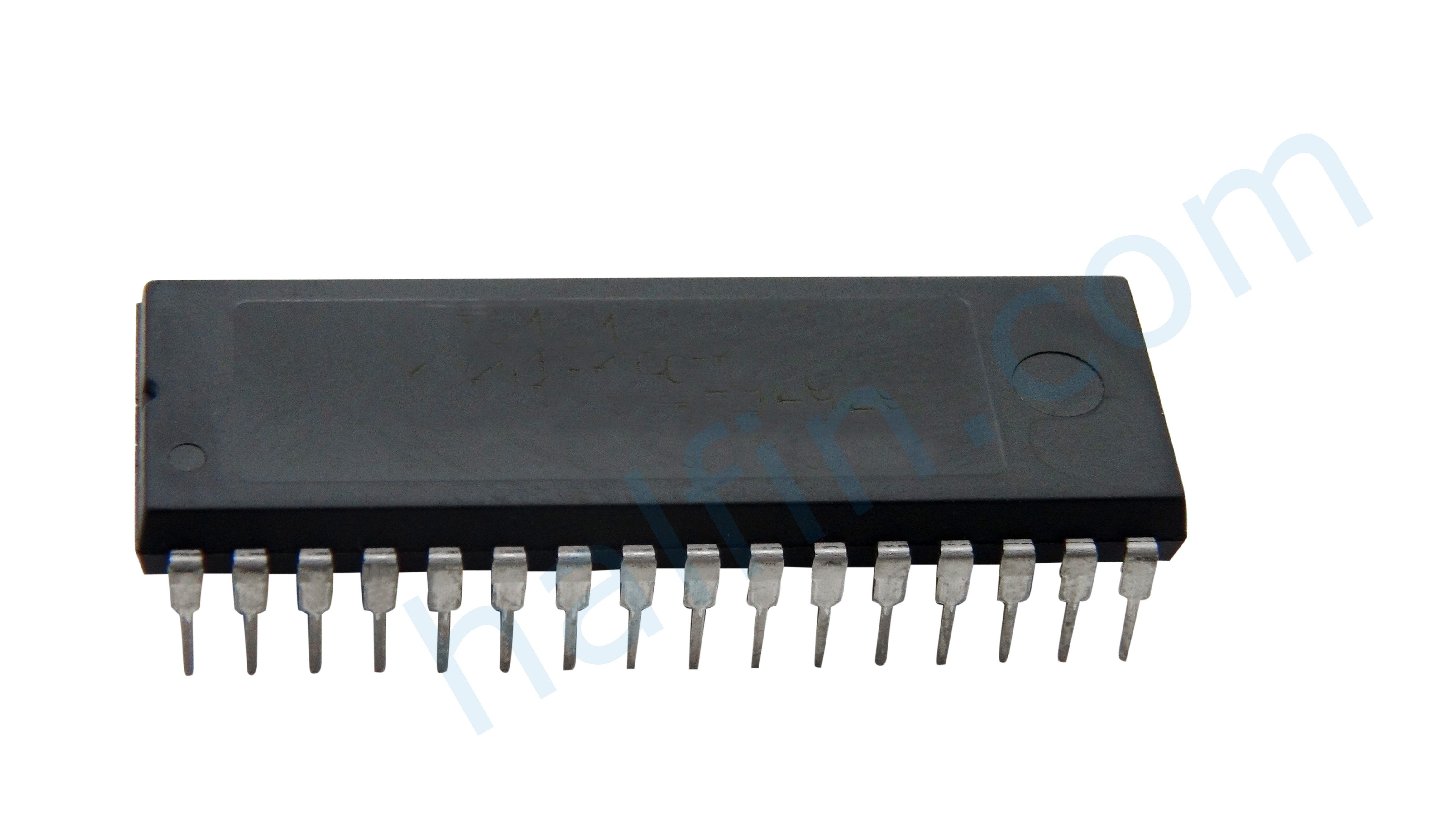

Product Images
