1Mb EPROM memory IC featuring 128K x 8 organization and 45ns access time. This non-volatile memory component operates with a 5V supply voltage, a 50mA supply current, and a 12.75V programming voltage. Housed in a lead-free, ceramic CDIP-32 package with a window for UV erasure, it supports through-hole mounting and operates within a temperature range of -40°C to 70°C.
PackageCDIP
Current50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M27C1001-45XF1 technical specifications.
General
| Access Time | 45ns |
| Access Time-Max | 45ns |
| Package/Case | CDIP |
| Density | 1Mb |
| Height | 4.5mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 42.04mm |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 1Mb |
| Memory Type | Non-Volatile, , EPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Organization | 128KX8 |
| Package Quantity | 240 |
| Packaging | Rail/Tube |
| Programming Voltage | 12.75V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 50mA |
| Width | 13.36mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M27C1001-45XF1 Datasheet
Download the complete datasheet for Stmicroelectronics M27C1001-45XF1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

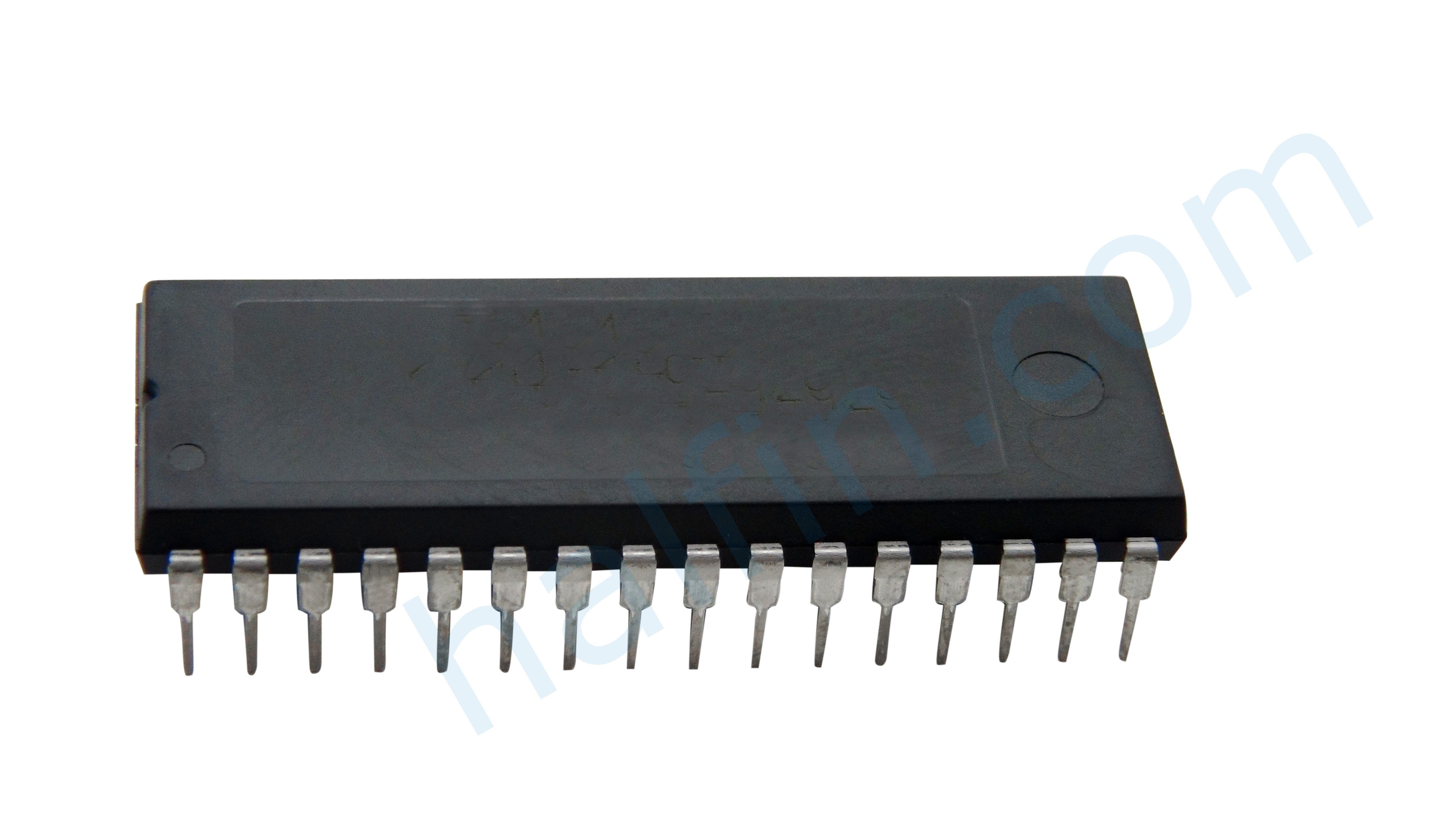

Product Images
