Stmicroelectronics
M27C2001-70XF1
256KX8 UVPROM, 70ns, CDIP32, LEAD FREE, WINDOWED, FRIT SEALED, CERAMIC, DIP-32
Current30mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M27C2001-70XF1 technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Density | 2Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 2Mb |
| Memory Type | Non-Volatile, , EPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Organization | 256KX8 |
| Package Quantity | 240 |
| Packaging | Rail/Tube |
| Programming Voltage | 12.75V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 30mA |
| Supply Voltage-Nom | 5V |
| Temperature Grade | COMMERCIAL |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M27C2001-70XF1 Datasheet
Download the complete datasheet for Stmicroelectronics M27C2001-70XF1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

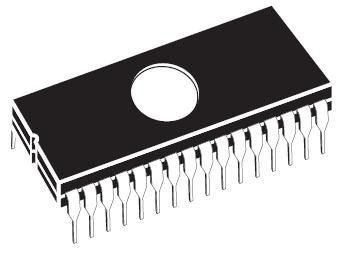

Product Images
