Stmicroelectronics
M27C4002-10F6
256KX16 UVPROM, 100ns, CDIP40, LEAD FREE, CERAMIC, WINDOWED, FRIT SEALED, DIP-40
Current70mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M27C4002-10F6 technical specifications.
General
| Access Time | 100ns |
| Access Time-Max | 100ns |
| Density | 4Mb |
| Input Capacitance | 6pF |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 4Mb |
| Memory Type | Non-Volatile, , EPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Current | 70mA |
| Operating Supply Voltage | 5V |
| Organization | 256KX16 |
| Packaging | Rail/Tube |
| Programming Voltage | 12.75V |
| RoHS Compliant | Yes |
| Supply Current | 70mA |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M27C4002-10F6 Datasheet
Download the complete datasheet for Stmicroelectronics M27C4002-10F6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

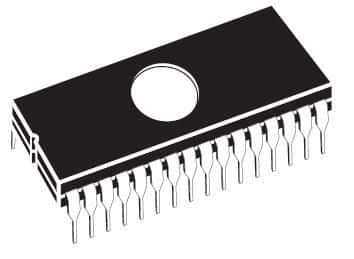

Product Images
