The M27C4002-12F1 is a 4Mb EPROM memory device with a 256KX16 organization. It operates at 5V with a maximum supply current of 70mA. The device is packaged in a lead-free, ceramic, windowed, FRIT sealed DIP-40 package and is suitable for through hole mounting. The operating temperature range is from -40°C to 70°C.
PackageDIP
Current70mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M27C4002-12F1 technical specifications.
General
| Access Time | 120ns |
| Access Time-Max | 120ns |
| Package/Case | DIP |
| Density | 4Mb |
| Input Capacitance | 6pF |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 4Mb |
| Memory Type | Non-Volatile, , EPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Organization | 256KX16 |
| Package Quantity | 180 |
| Packaging | Rail/Tube |
| Programming Voltage | 12.75V |
| RoHS Compliant | Yes |
| Supply Current | 70mA |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M27C4002-12F1 Datasheet
Download the complete datasheet for Stmicroelectronics M27C4002-12F1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

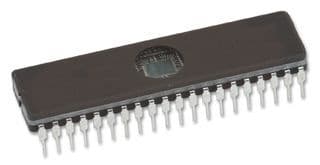

Product Images
