Stmicroelectronics
M27C4002-80XF1
256KX16 UVPROM, 80ns, CDIP40, LEAD FREE, CERAMIC, WINDOWED, FRIT SEALED, DIP-40
PackageDIP
Current70mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Stmicroelectronics M27C4002-80XF1 technical specifications.
General
| Access Time | 80ns |
| Access Time-Max | 80ns |
| Package/Case | DIP |
| Density | 4Mb |
| Height | 4.5mm |
| Interface | Parallel |
| Length | 52.6mm |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 4Mb |
| Memory Type | Non-Volatile, , EPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Organization | 256KX16 |
| Package Quantity | 180 |
| Packaging | Rail/Tube |
| Programming Voltage | 12.75V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 70mA |
| Width | 13.36mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics M27C4002-80XF1 Datasheet
Download the complete datasheet for Stmicroelectronics M27C4002-80XF1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

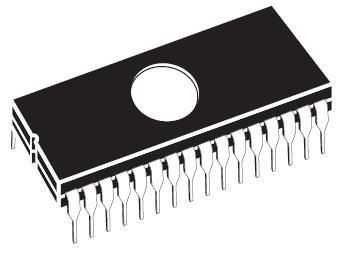

Product Images
